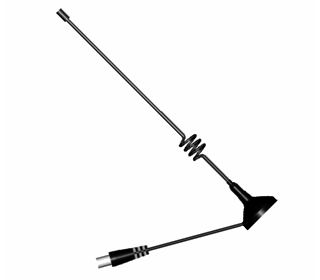

V.S.W.R. : ≦ 3.0
Gain : related to cable length
Cable : RG-174 / 1.5C-2V / 3C-2V
Application: PAL(IEC) / F / MCX / SMA
Dimension : H158 x Dia . 47 (mm)

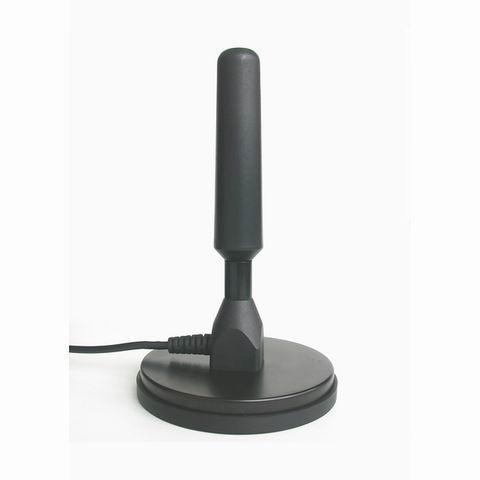

AN8925-42
Technical Specification
V.S.W.R. : ≦ 3.0
Gain : related to cable length
Cable : RG-174 / 1.5C-2V / 3C-2V
Application: PAL(IEC) / F / MCX / SMA
Dimension : H146 x Dia . 84 (mm)

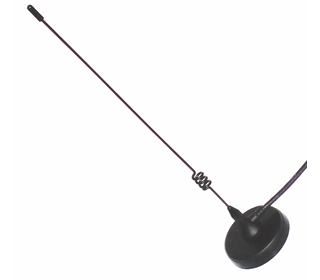

AN8925-62
Technical Specification
V.S.W.R. : ≦ 3.0
Gain : related to cable length
Cable : RG-174 / 1.5C-2V
Application: F / MCX / SMA
Dimension : H335 x Dia . 69 (mm)

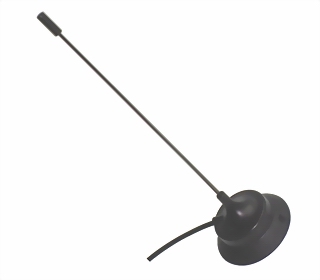

AN8925-98
Technical Specification
V.S.W.R. : ≦ 3.0
Gain : related to cable length
Cable : RG-174 / 1.5C-2V
Application: F / MCX / SMA
Dimension : H300 x Dia . 34 (mm)
